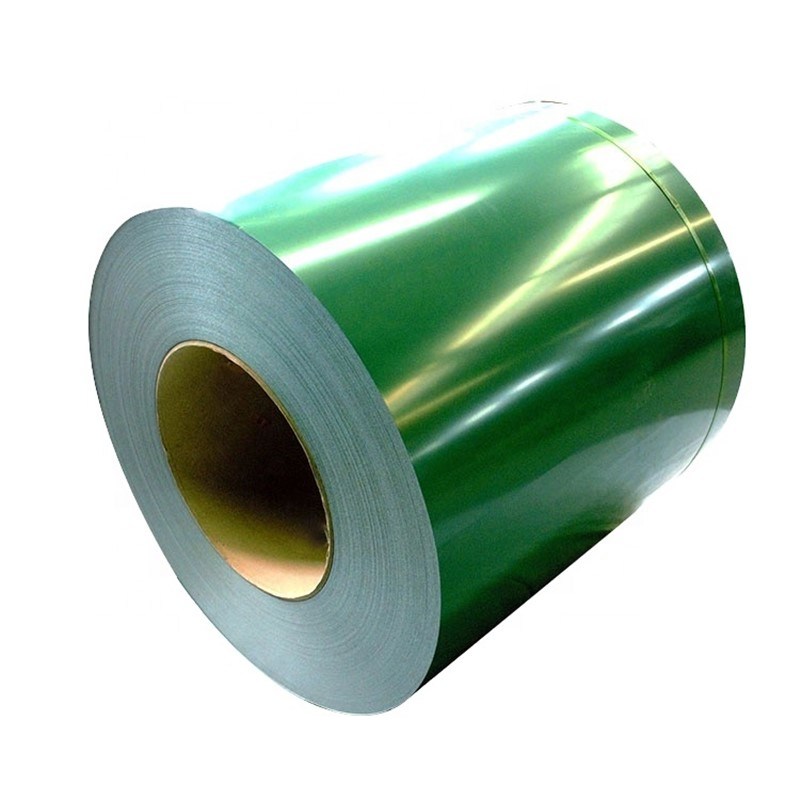

Premium Pre-painted Carbon Steel Coils (PPGI/PPGL)
As a leading manufacturer, Baoli Iron Steel specializes in providing high-quality Pre-painted Carbon Steel Coils, also widely known as PPGI (Pre-painted Galvanized Iron) or PPGL (Pre-painted Galvalume Steel). Our coils are a testament to advanced coating technology, combining exceptional aesthetics with superior functional performance. Through a meticulous pre-treatment and continuous coil coating process, each coil receives a uniform, durable paint layer that not only enhances visual appeal but also provides robust protection against corrosion, ensuring extended product lifespan in diverse environments.
Key Features & Advantages:
- Superior Corrosion Resistance: Our multi-layer paint system, applied over a galvanized (zinc-coated) or galvalume (aluminum-zinc alloy-coated) substrate, offers an impenetrable barrier against rust and environmental elements, significantly extending the material’s service life.
- Unrivaled Aesthetic Versatility: Available in an extensive range of RAL, Pantone, and custom colors, with various finishes including smooth, matte, and embossed textures. This flexibility empowers designers and manufacturers to achieve precise visual specifications for their projects.
- Exceptional Durability & Longevity: Engineered to resist fading, chalking, and scratching, our pre-painted coils maintain their vibrant appearance even under prolonged exposure to harsh UV radiation and extreme weather conditions, making them ideal for both indoor and demanding outdoor applications.
- Excellent Formability: The advanced paint systems are designed to withstand various fabrication processes such as bending, roll-forming, stamping, and deep drawing without cracking, peeling, or compromising the coating integrity.
- Cost-Effective & Eco-Friendly: By eliminating the need for post-painting, our coils offer significant cost and time savings. We adhere to strict environmental standards, providing lead-free and recyclable materials.
Technical Specifications:
Substrate Materials:
- Hot-dip Galvanized Steel (GI): ASTM A653, EN 10346 (e.g., DX51D+Z, DX52D+Z), JIS G3302 (SGCC). Zinc coating mass (Z) typically ranging from Z60 to Z275 g/m².
- Galvalume Steel (GL) / Alu-Zinc Steel: ASTM A792, EN 10346 (e.g., SGLCC). Alu-Zinc coating mass (AZ) typically ranging from AZ50 to AZ200 g/m², offering superior long-term corrosion resistance.
- Cold Rolled (CR) Steel: For specific indoor applications where corrosion resistance is less critical, or a specific surface finish is required.
Paint Systems:
- Top Coat: Polyester (PE), Silicone Modified Polyester (SMP), Polyvinylidene Fluoride (PVDF), Super Durable Polyester (SDP), Polyurethane (PU).
- Primer Coat: Epoxy or Polyurethane, typically 5-7 microns.
- Back Coat: Modified Epoxy or Acrylic, typically 5-10 microns (single or double coated).
- Paint Thickness: Top coat 15-30 microns; Back coat 5-10 microns.
Common Dimensions:
- Thickness: 0.2mm – 1.5mm (or customized as per project requirements).
- Width: 600mm – 1250mm (standard range), with custom widths available upon request.
- Coil Inner Diameter (ID): 508mm or 610mm.
- Coil Weight: 3-10 tons (can be adjusted based on customer’s lifting capacity).
Typical Applications:
- Building & Construction: Roofing, wall cladding, exterior and interior panels, sandwich panels, garage doors, ceiling systems, partition walls, fencing.
- Home Appliances: Refrigerators, washing machines, microwaves, air conditioners, water heaters, freezers, decorative panels.
- Automotive: Interior components, non-structural parts, bus and truck body panels.
- HVAC & Ductwork: Air conditioning units, ventilation systems, cooling towers.
- Furniture & Office Equipment: Desks, cabinets, lockers, computer casings.
- Decorative Elements: Signage, storefronts, lighting fixtures, general fabrication.
Why Choose Baoli Iron Steel?
- Global Export Network: We proudly serve clients in numerous countries and regions worldwide, ensuring timely and efficient delivery.
- Customization Capabilities: As a factory, we offer extensive customization in terms of material grades, paint systems, colors, thicknesses, and widths to meet your precise project specifications.
- Quality Assurance: Adhering to international standards (ASTM, JIS, EN, ISO 9001), our products undergo rigorous quality control at every stage of production.
- Reliable & Responsive Service: Our dedicated team is committed to providing excellent pre-sales and after-sales support, ensuring a seamless experience.
